Description:

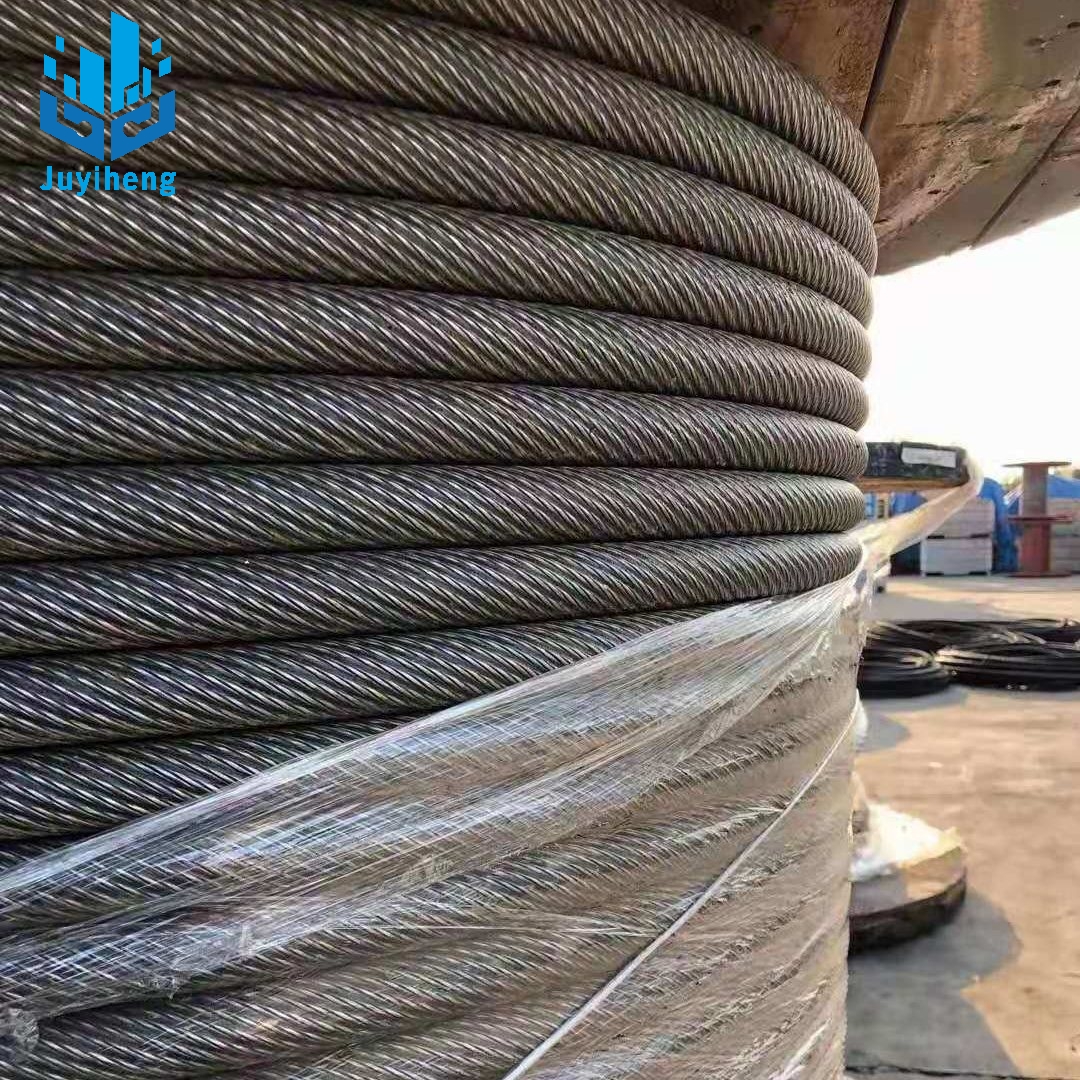

1. Product Type: Shaped Strand Wire Rope

2. Rope Construction: 4V×39S+5FC, 4V×48S+5FC, 6V×21+7FC, 6V×24+7FC, 6V×30+FC, 6V×34+FC, 6Vx37+FC.

3. Rope Nominal Diameter: 28mm~58mm

4. Length: Customized

5. Surface: Galvanized/ Smooth

6. Nominal Tensile Strength: 1670Mpa~1960Mpa

7. Standards: Perform national and international standards, GB/T20118, EN, GOST, API.

8. Place of Origin: JiNan, China

9. Brand Name: JYH

For more information, please see the specification below or contact us.

Description:

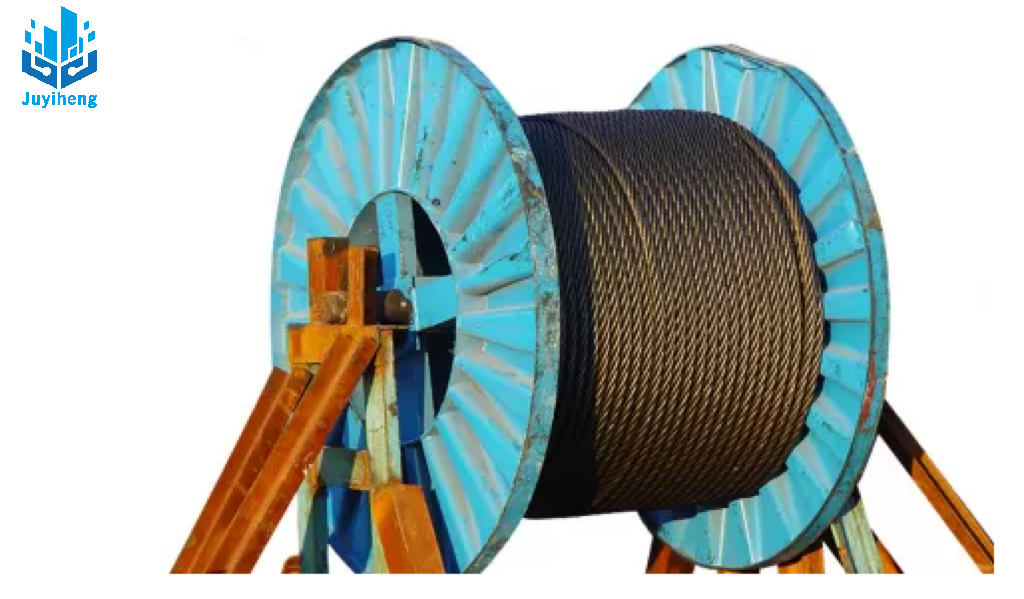

1. Product Type: Compacted Strand Wire Rope

2. Rope Construction: 6×K19S+IWRC, 6×K31WS+IWRC, 6×K36WS+IWRC, 6×K41WS+IWRC, 8×K19S+FC, 8×K26WS+IWRC, 8×K36WS+IWRC.

3. Rope Nominal Diameter: 12mm~68mm

4. Application: They can be used as Variable amplitude rope on mobile crane, vessel crane and grab bucket crane. And can be used as hoisting rope on container crane, floating crane, portal crane and steel factory crane etc. Also be applicable to multi-muliplying power system with smaller hoisting height, double colling block system with matched left-hand and right-hand pairs using for deep hoisting height.

5. Length: Customized

6. Surface: Galvanized/ Smooth

7. Nominal Tensile Strength: 1670Mpa~1960Mpa

8. Standards: Perform national and international standards, GB/T20118, EN, GOST, API.

9. Place of Origin: JiNan, China

10. Brand Name: JuYiHeng

The following structures are not the only ones we can do, if you want to know more, please contact us.

Description:

1. Product advantage：High level quality raw material, focus on big diameter, high tensile strength, over-long, and special construction.

2. Standards: Perform national and international standards, GB/T20118, EN, GOST, API.

3. High quality: Strict quality control before,in and after production. Authoritative testing report can be provided. Ensuring steel wire rope has the following advantages: Transmit long distance load, high tensile strength, fatigue strength and impact toughness, Wear-resistant, anti-seismic and stable in operation at high speed.

Description:

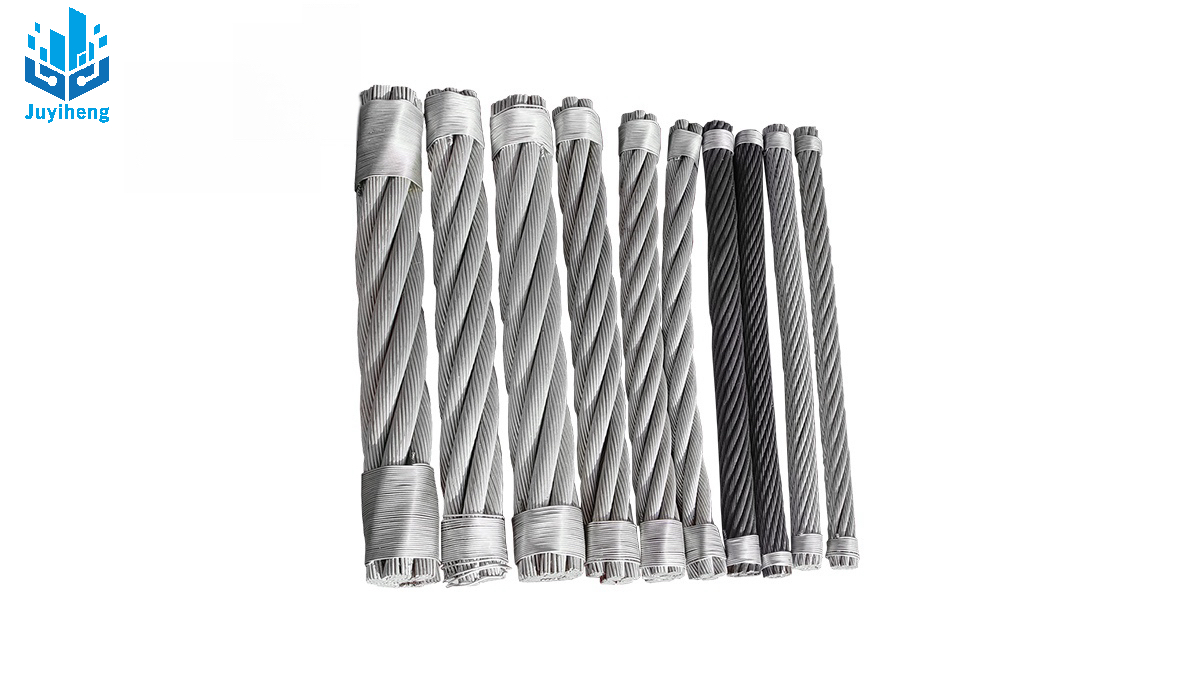

1. Product Name: Steel wire rope

2. Rope Construction:

6×25Fi+FC, 6x26WS+FC, 6×29Fi+FC, 6x31WS+FC, 6x36WS+FC, 6x37+FC, 6x41WS+FC, 6x49SWS+FC, 6x55SWS+FC, 6×25Fi+IWR, 6×26WS+IWR, 6×29Fi+IWR, 6×31WS+IWR, 6×36WS+IWR, 6×37+IWR, 6×41WS+IWR, 6×49SWS+IWR,

6×55SWS+IWR.

6×25Fi: It is used in blast furnace hoisting, petroleum drilling, heavy-duty crane (steel core), heavy lifting and other importantusage of crane, steel heat transfer machine (steel core), Shipping handling.

6×26WS: It is used in blast furnace hoisting, petroleum drilling, heavy lifting and other important usage of crane.

6×29Fi: It is used in blast furnace hoisting. petroleum driling, heavy lifting and other important uses of crane, steel heat transfermachine (steel core), shipping handling.

6×31WS: It is used in blast furnace hoisting, petroleum drilling, heavy lifting and other important uses of crane, steel heattransfer machine (steel core), shipping handling, tow boat, cargo net.

6x36WS: It is used in balance shaft rope (only interactive twist), blast furnace hoisting, petroleum drilling, heavy lifting and otherimportant uses of crane, steel heat transfer machine (steel core), shipping handling, tow boat, cargo net, salvage.

6×37S: It is used in balance shaft rope (only interactive twist), heavy lifting and other important uses of crane, steel heat transfer machine (steel core), shipping handling, tow boat, cargo net, salvage.

6×49SWS, 6×55SWS: It is used in heavy lifting and other important usage of crane, salvage.

3. Rope Nominal Diameter: 16mm~100mm

4. Length: Customized

5. Surface: Galvanized/ Smooth

6. Nominal Tensile Strength: 1570Mpa~2160Mpa

7. Standards: Perform national and international standards, GB/T20118, EN, GOST, API.

8. Place of Origin: JInan, China

9. Brand Name: JYH
